Frequency Converter

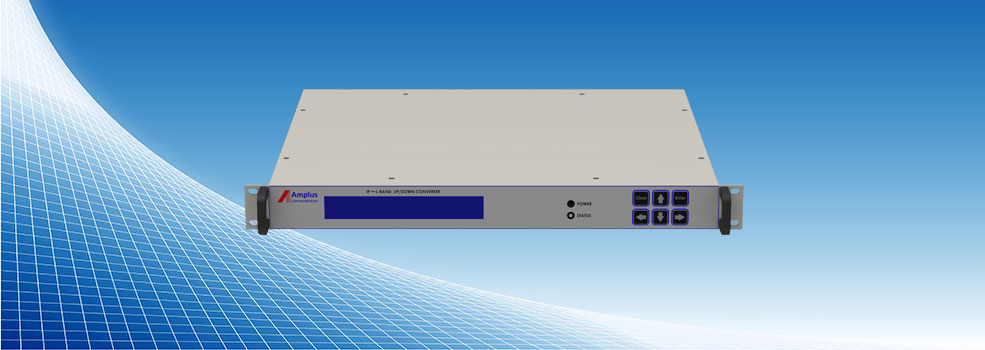

The AM-922X Series Up/Down Converter translates either 70MHz IF or L-band signal to a user selected frequency at L-Band, C-band or Ku-band and vice versa with independent adjustable gain.

For L-band converter, single cable which carries 10MHz reference and DC supplies, is used to connect to the BUC/LNB. The channel setting, gain adjustment for transmit and receive and BUC/LNB power supplies are controlled via front panel push-buttons for swift access. LCD and LEDs provide visual indication of the unit’s status. Remotely, it can be controlled via RS232 serial interface or Ethernet located at rear panel.


AM-9220/1 Series Indoor IF to L-Band Up/Down Converter

  Datasheet

AM-9220 Series Outdoor 70MHz to L-Band Up/Down Converter

  Datasheet

AM-922X Series IF-C Band Up Converter

  Datasheet

AM-922X Series C Band-IF Down Converter

  Datasheet

AM-922X Series C-L Band Down Converter

  Datasheet


AM-922X Series L-Ku Band Up Converter

  Datasheet

AM-922X Series Ku-L Band Down Converter

  Datasheet
